Measuring the Impact of SmarTrip® Initiatives

July 22nd, 2013 8 comments

Metro first rolled out SmarTrip® on rail in 1999, breaking new ground as the first contact-less smart card used for transit in the United States. Metro began rolling out SmarTrip® on bus in 2002 and then to Metrorail parking facilities in 2004.   While the utility of SmarTrip® was immediately obvious to many customers, others required a bit of encouragement to switch to the fare media that is most cost-effective for Metro and customers alike.

Usage of SmarTrip® on rail has been growing steadily since its launch, but use on bus seemed to plateau around 20% on bus starting in about July 2006 until about January 2008.  That was the date when Metro began its first major initiative to encourage people to move to SmarTrip by implementing a $0.10 surcharge for using cash on bus.

Since then, Metro has rolled out new SmarTrip features and additional incentives to continue the increase in SmarTrip use rate.

The chart below illustrates the changes in SmarTrip use rate on both bus and rail, overlaid with the dates of the initiatives and feature releases that helped motivate customers to switch to SmarTrip.  The usage rate now is nearly 90% on both bus and rail! Read more…

Southern Ave Station Auto Access “Hotspots”

May 13th, 2013 8 comments

Heat map showing short-distance parking access at Forest Glen station, which will be incorporated into the next rail to bike planning effort (click for full map)

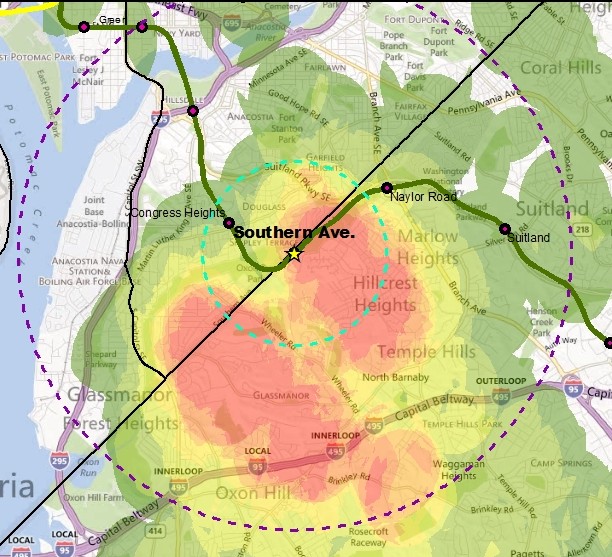

Heat map showing parking access within 1 mile and 3 miles at Southern Ave. station, which may indicate good opportunities for pedestrian and bicycle improvements  (click for full map)

Last December we looked at the Forest Glen station and asked you for insights on why people coming from so close (less than three miles) would drive to the station. In the upcoming weeks we are taking a look at five additional stations that also have a high percent of short-distance parking access and low bicycle use: Southern Ave, Glenmont, Largo Town Center, and Grosvenor-Strathmore. For each, we will explore the station’s local conditions and we ask you to share your insights about what can be done to improve walking and biking access to these stations.

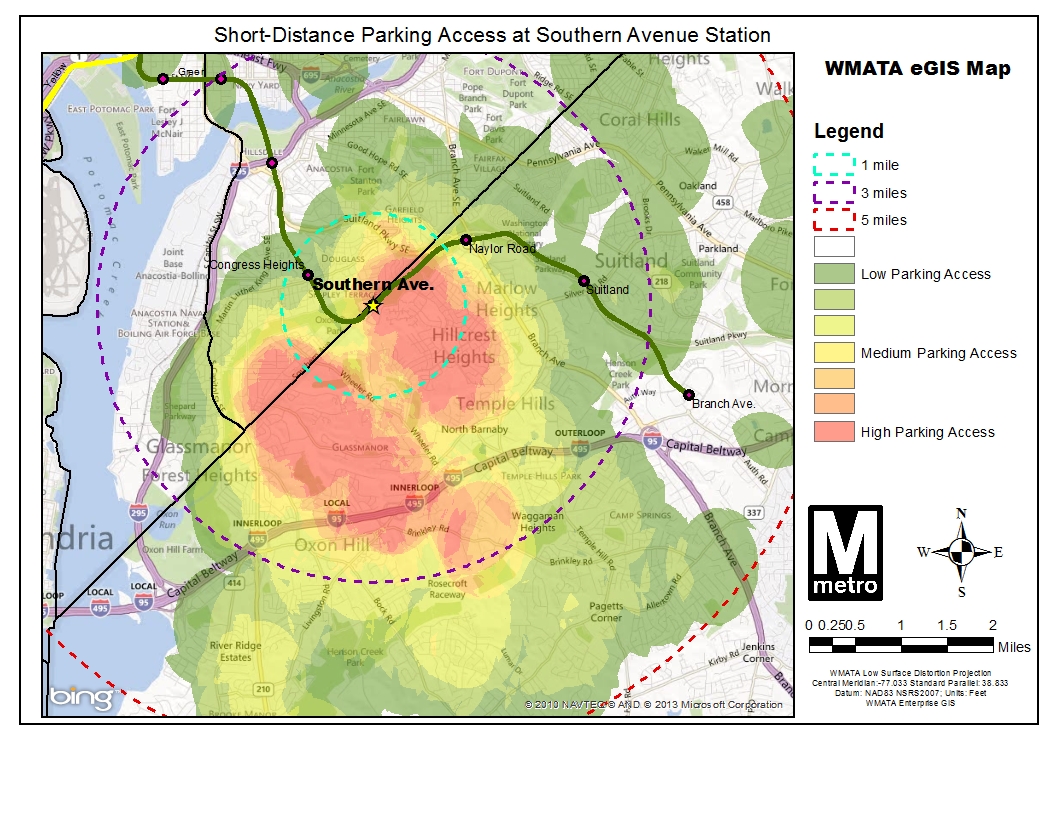

The map on the right (full version) shows auto access “hotspots” around Southern Ave station. The Southern Ave station is located just southeast of the boundary between the District of Columbia and Prince George’s County.

Many residential neighborhoods are located within the three-mile radius of the station, and a large concentration of parking users residing within one mile of the station.

However, many possible barriers could inhibit non-motorized travel to Metro:

  • Southern Ave SE is a fast-moving, four-lane road that is uninviting to pedestrians, despite traffic signals, sidewalks and streetlights.
    • gives the Southern Ave Metrorail station a walk score of 52 out of a possible 100.
  • The station has no direct connectivity to the surrounding residential neighborhoods.  All access to the station must occur via Southern Ave SE.  As such, many neighbors of the station must travel long and circuitous routes to access Metrorail.  See the image below.
  • The station nestled into a corner of Oxon Run Park, further limiting station access routes for nearby residents.

Read more…

Share of Reverse Commute Trips Growing

May 6th, 2013 13 comments

Metro is focused on solving one of the region’s most pressing mobility issues – increasing the capacity of the system to handle more trips through the core (defined below) of the Metrorail system.  While Metro’s planning staff has been conducting technical analyses and searching for the best solutions for some time, we also asked for ideas for increasing core capacity from you as well as discussed the potential for  new lines, new connections and expanding to all 8-car trains during peak periods.

There are also operational strategies Metro could employ to provide more trips on the rail system without expanding capacity.  Among the various options is to promote and encourage more “reverse commuting” where commuters travel opposite the peak travel direction in seats that would otherwise be empty.  Data show that reverse commuting has already increased over the past 10 years and many speculate that it will only increase further as the region builds more suburban town centers near Metro and as Metro begins operations on the Silver Line later this year.
Read more…

Chart of the Week: “Hotspots” for Pedestrian and Bike Access to Rail Stations

December 17th, 2012 11 comments

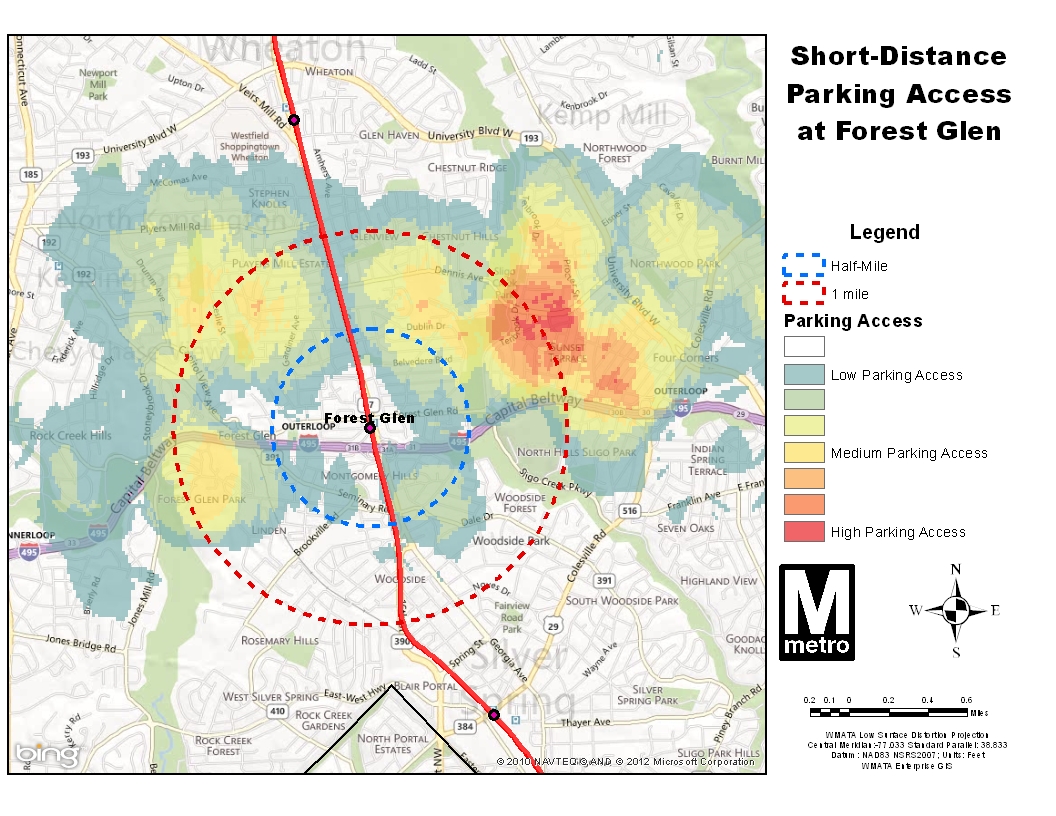

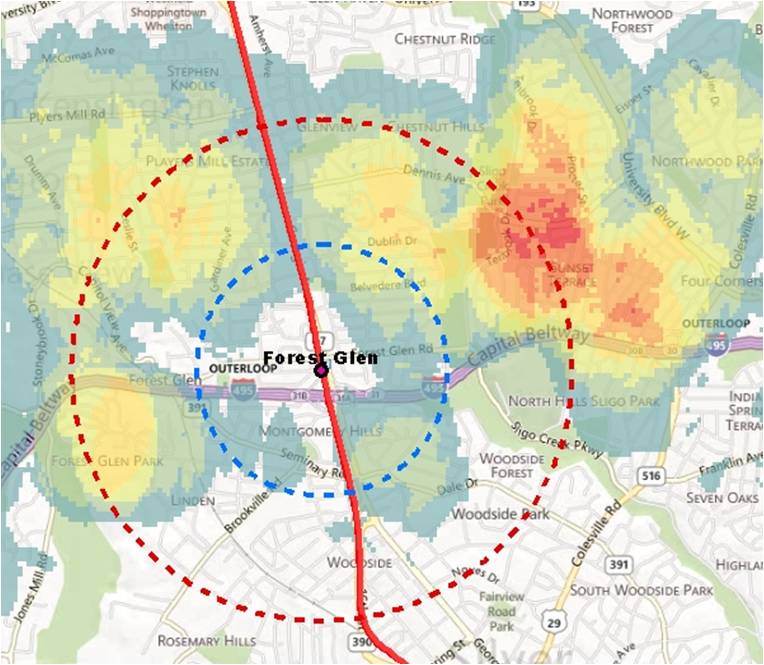

Heat map showing short-distance parking access at Forest Glen station, which indicates good opportunities for pedestrian and bicycle access (click for full map)

In our effort to improve safety, access and sustainability, Metro is expanding our understanding of bike and pedestrian barriers faced in commuting to our Metrorail stations. Over the past several years, we have focused our bike and pedestrian project planning and implementation efforts on improvements we can make to our station areas such as, installing bike racks or constructing pedestrian improvements. Now, we’d like to expand the envelope and develop a list of access needs beyond our own boundaries and work with our jurisdictional partners to make needed improvements.

One way we are doing this is by gaining a better understanding of where auto commuters come from when they drive to our stations, and zeroing in on areas where we see a good deal of auto access to determine if there are barriers to walking or biking to the station.

The map at right (full version) shows auto-to-station “hot spots” around the Forest Glen station, to pick one example, locations from which clusters of customers drive and park at Metro. According to the 2007 Metrorail Passenger Survey data, many customers drive from within a 1-3 mile radius; some are even closer. So why are so many people from this area driving? In our 2010 Bicycle and Pedestrian Master Plan, we teased out some of the more broad-based reasons why people drive rather than walk or bike – now we’d like to explore each station’s local conditions and see what can be done to improve walk and bike access.

The Forest Glen station is located north of the Capital Beltway and west of Georgia Avenue. More commuters to Forest Glen are from north of the Beltway and east of Georgia Avenue. There is pedestrian overpass over the Capital Beltway which helps facilitate foot traffic:  Is crossing Georgia Ave then a barrier?  There are four Metro rail stations located within a 2-mile radius of Forest Glen which draw away commuters farther from the station. This could help to explain the highly localized nature of the parking shed.

There are many factors not considered here such as demographics, bus usage, and average driving trends. Further research into parking and commuting trends is in the works.

If you commute from this area, can you comment about what you experience on your commute? Do you drive?  If so, what factors influence you to drive instead of walk or bike? Would you like to walk or bike, but the infrastructure isn’t there or the traffic is too daunting? Or do you see something else from this data? We want to hear from you and appreciate any feedback you have that can make our system more accessible to pedestrians and cyclists.

Chart of the Week: Updated Visualization of Metro and Circulator

December 11th, 2012 Comments off

A few weeks ago we posted a video visualization of one day’s worth of Metrorail, Metrobus and Circulator created by STLTransit.  Upon first seeing this video, contacted them to thank them for their work and also asked whether the Metrorail could be made to stand out more in the video, to differentiate it from Metrobus and Circulator.  This morning, I received a link the updated video embedded below, a great improvement.  Metrorail trains are now shown as “tadpoles” instead of dots, which allows them to be more visible and better represents the carrying capacity of a train (800+ people) versus a bus (60+).  Check it out.

It looks best in HD mode full-screen.

Chart of the Week: Metro Key to Region’s Growth

December 3rd, 2012 Comments off

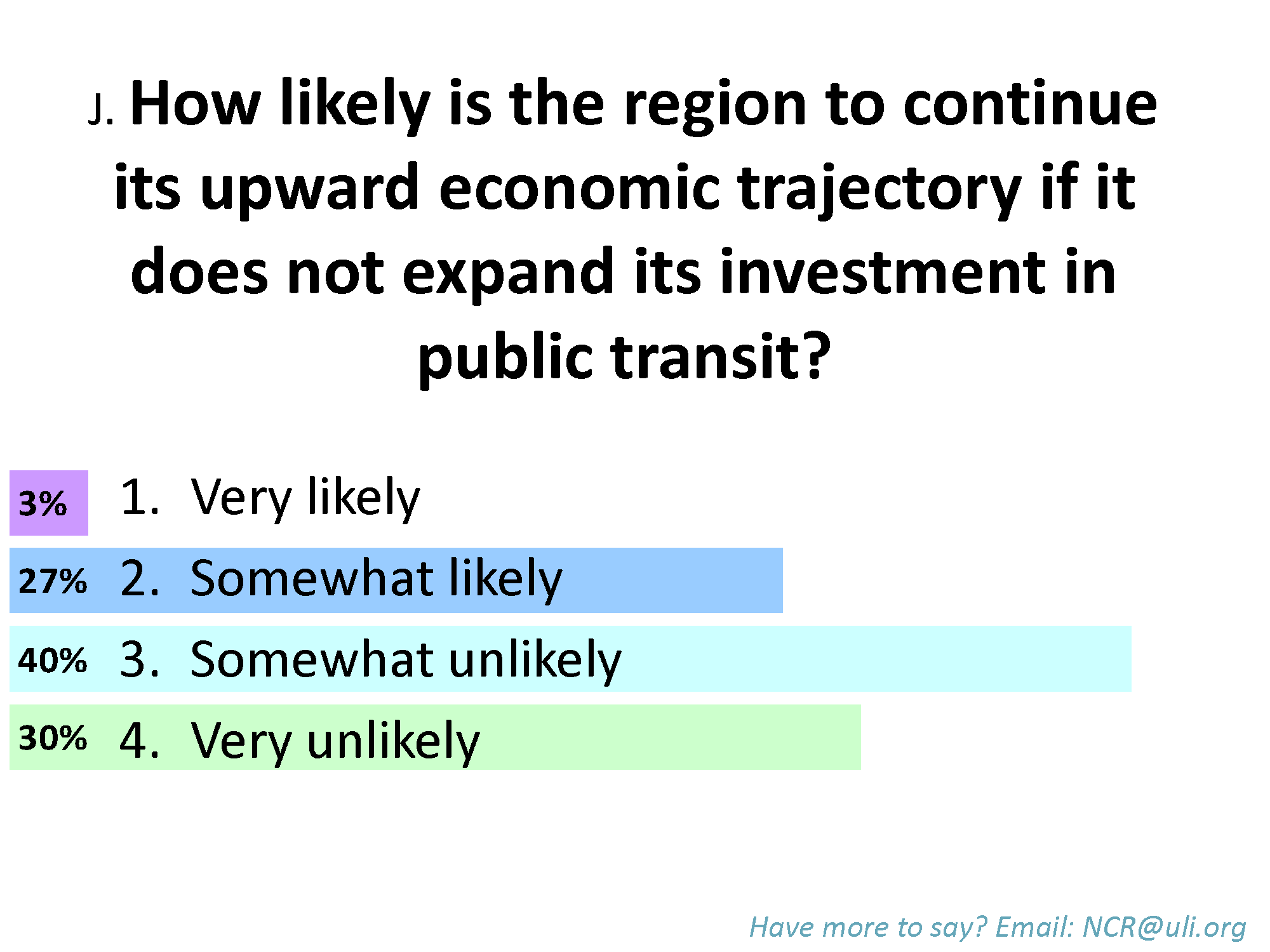

70% of the participants felt that expanded investment in public transit is key to continued economic growth in the Washington region.

Over the past decade there have been many significant efforts to promote regionalism in the National Capital region.Endeavors including Reality Check, COG’s Region Forward and the work of the 2030 group, have envisioned a region that is more accessible, prosperous, sustainable and livable.

Building on these plans and visions, on November 13th, ULI Washington hosted “Regional Leadership: Vision to Action,” an invitation-only event for the region’s leaders in business, land-use and real estate. The purpose of the event was to examine regional strategies for improving economic development and quality of life in the National Capital Region. A report summarizing the content of the event is being developed by ULI Washington and will be published in December 2012 at Read more…

Chart of the Week: Getting Past the Max on the Current Tracks

November 26th, 2012 Comments off

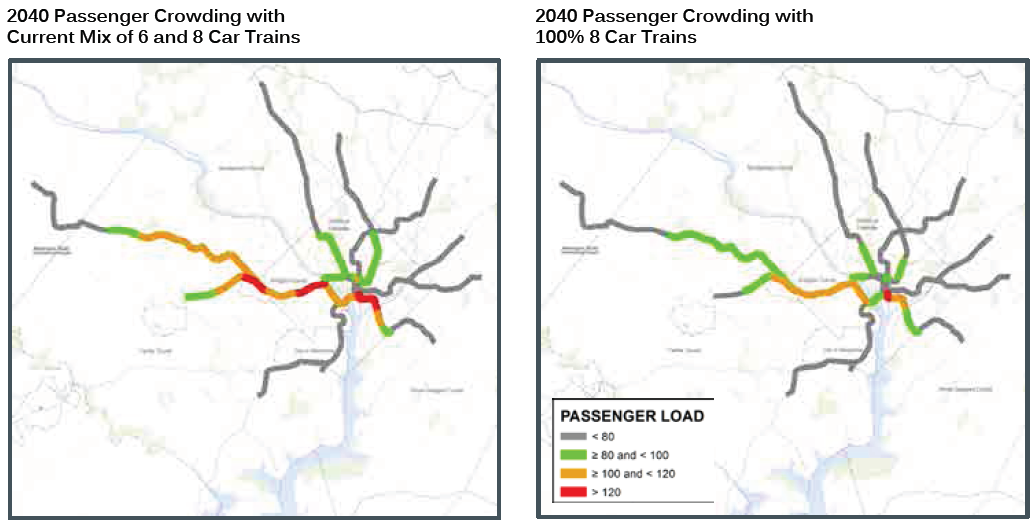

Metrorail congestion in 2040 with and without all eight-car trains.

Metro is planning to alleviate these crowded trains and platforms by investigating the potential of running 100% eight-car trains, among other options. This option would require not only planning, but at the very least purchasing more cars, finding places to store and service these cars, and upgrading our power network to power the vehicles.  Going “All 8s” is a major capital investment, which includes  power upgrades, vehicle purchases and storage facilities. Additional operating (recurring) costs are also associated with running all 8-car trains, including increased car maintenance staff and additional power.

If we can reach this goal, each of the current six rail lines entering the DC core in the peak direction could handle a huge volume — upwards of 20,000 passengers per hour, up from between 14,000 to 17,000 depending on the line. Even with the growth expected through 2040 this would mean much less severe crowding than would occur without those additional cars.  The graphic on the right, above, illustrates the additional system throughput provided by running 100% eight-car trains.

To read more about Metro’s future and join the conversation, visit

Chart of the Week: Visualize One Day of Metro and Circulator

November 19th, 2012 3 comments

This great video shows one day’s worth of Metrorail, Metrobus and DC Circulator moving across the region.Metrobus and Circulator are both shown as white dots, while the Metrorail dots are keyed to line color.

The video should be viewed in full screen mode in order to really see Metrorail.

This video was created using the data from the Metro GTFS data feed by STLTransit, who have made similar videos for a variety of other cities.

Chart of the Week: Influencing Factors on Weekend Metrorail Ridership

November 13th, 2012 2 comments

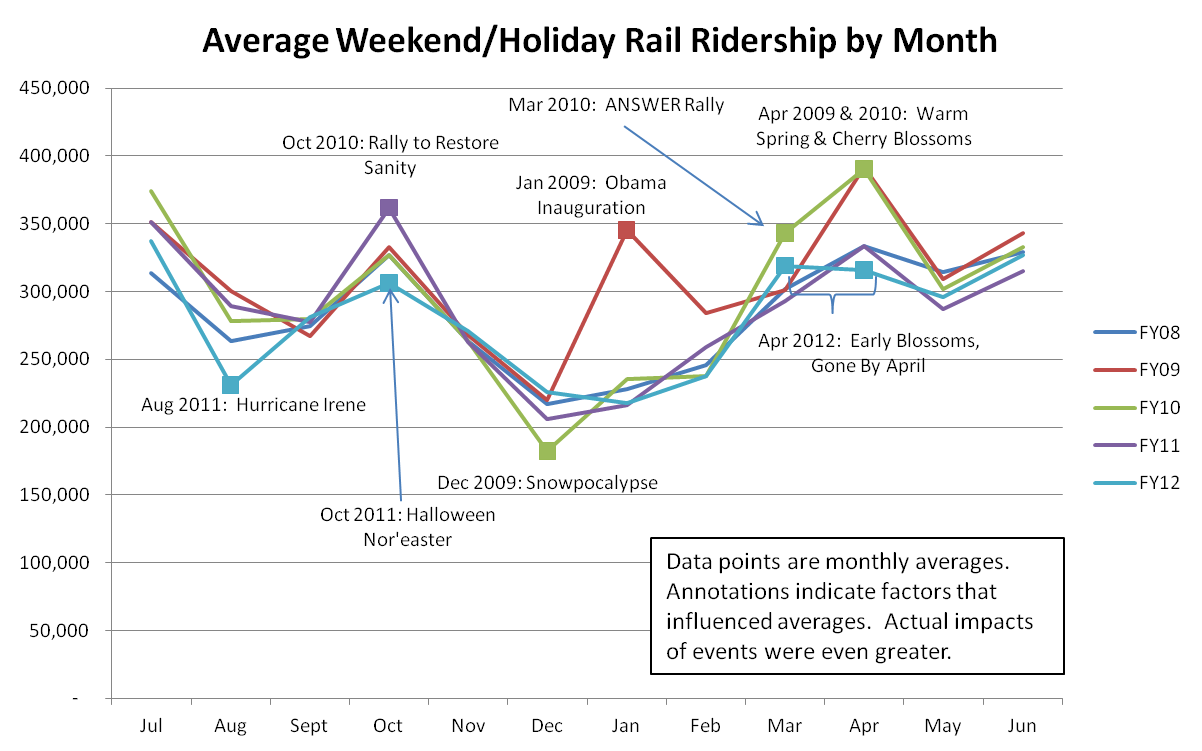

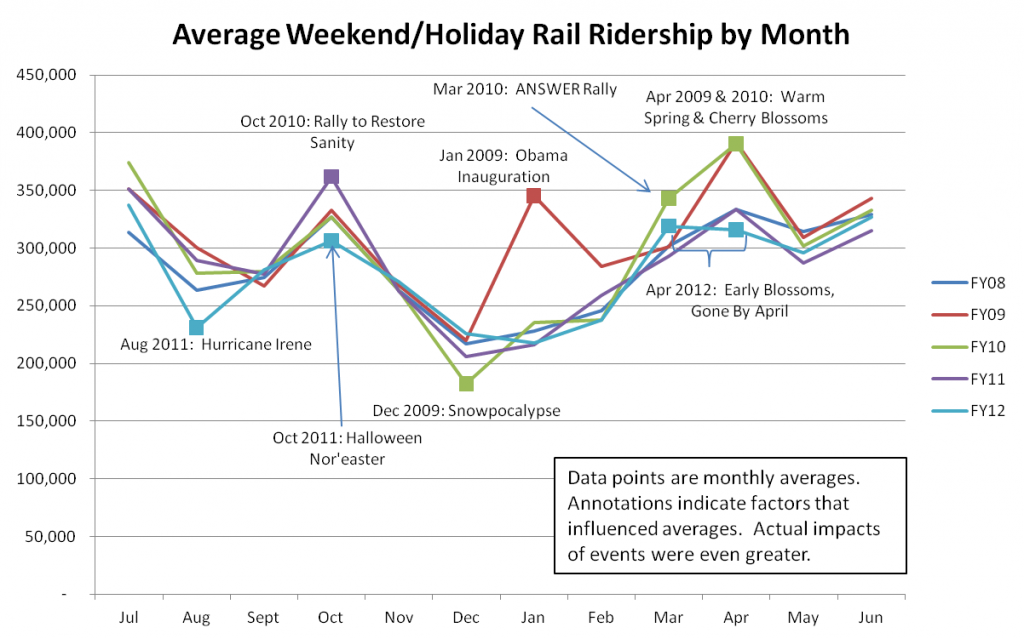

Average weekend ridership by month, FY08 to FY12.Events that impacted the average ridership during a given month are indicated with annotations.(Click for a larger version.)

A recent assessment of rail ridership over the past five years has concluded that in addition to moving people to and from work during the week, Metro also has a critical role to play in moving people to and from weekend activities and special/holiday events.

From the chart above, it is clear that Metrorail supports a large volume of travel to a wide variety of special events that are unique to the area:presidential inaugurations, issues rallies, and cultural events such as the annual Cherry Blossom Festival.  Metro is more than just a commuting tool:  the hundreds of thousands of trips on weekends and holidays show that the rail system is busy on weekends, too.

It is also important to note that Metrorail is not immune from the impacts of severe weather, such as the massive weekend snowstorm in December of 2009 and Hurricane Irene in August of 2011, both of  which cut into ridership and reduced revenues.  And because weekend trips are more often discretionary than weekday work trips, the impact of weather on weekend ridership can be much greater (in percentage terms) than on weekdays.


Chart of the Week: Metrorail and Metrobus Ridership 5-Year Trend

October 29th, 2012 Comments off

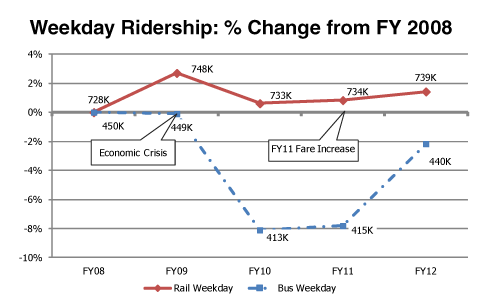

A recent analysis of 5 years worth of ridership data has shown the impacts of the economic downturn and subsequent recovery on Metrorail and Metrobus ridership. Metrorail ridership experienced a 2% drop in ridership in FY10 and then recovery in FY11 and FY12, 1% below FY09 levels. Metrobus ridership experienced an 8% drop in FY10 and began recovery in earnest in FY12, returning to just over 1% above FY08 levels.
